ESFR sprinklers in Edmonton warehouses and what limits them

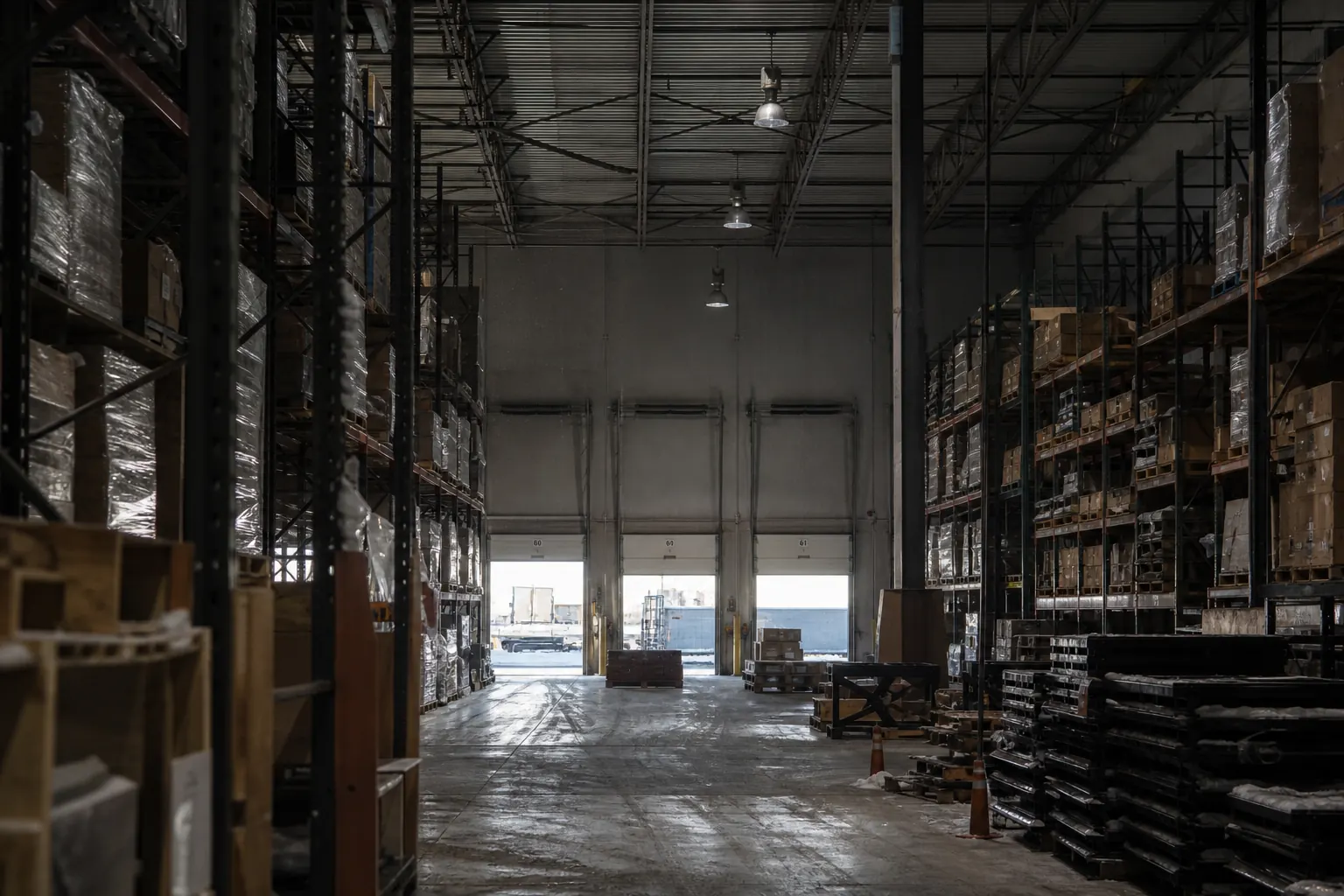

Where ESFR sprinklers fit in an Edmonton warehouse

ESFR sprinklers can protect racked or palletized storage from the ceiling alone, with no sprinklers inside the racks, but only while the storage, the roof and everything hanging under it stay inside the limits of the head's listing. Move a duct, swap the racks or change the commodity after the permit is issued and the design may no longer describe the building you have. This article covers where those limits sit and how a GC keeps the other trades from crossing them.

ESFR stands for early suppression, fast response. A standard spray sprinkler tries to control a fire by wetting and cooling until the fire department arrives. An ESFR head is built to suppress it: a fast-response element, a big orifice (the Tyco heads discussed below run from K14.0 to K25.2) and a spray shaped to push water down through the fire plume to a burning pallet at floor level. That's why it can replace in-rack sprinklers. It's also why it's fussy.

In Alberta the National Building Code 2023 Alberta Edition calls up NFPA 13-2019 for sprinkler design (Division B, 3.2.5.12). That's not the 2022 or 2025 edition most online ESFR advice quotes, so treat out-of-province numbers with suspicion. After handover, the National Fire Code 2023 Alberta Edition (NFC(AE) 2023) makes the owner responsible for keeping the system inspected to NFPA 25-2017. Our fire sprinkler systems page shows how ESFR compares with wet, dry, preaction and deluge.

The limits that decide whether ESFR works

A handful of limits do most of the damage. The rules below are as published in NFPA 13-2019 material and in manufacturer listings, and your designer's drawings govern.

Two of these catch people more than the others.

The shelf rule catches retail-style warehouses that add decking or shelves to their racks, so have the designer check your shelving against NFPA 13-2019 before you buy it. And the 36 inches is the number nobody remembers. Picture a building leased at 32 ft clear, with heads hanging 18 in. under the deck. The deflectors sit at 30 ft 6 in., so the top of the load stops at 27 ft 6 in. Clear height in a lease isn't usable pallet height, and the tenant's racking quote is often written to the first number.

Obstructions, and the trades that create them

ESFR discharge is easier to wreck than a standard sprinkler's, and the people who wreck it are usually other subs. NFPA 13-2019 has no "three-times rule" for ESFR obstructions. It has a list of clearance conditions instead, summarized by PHCP Pros:

• A continuous obstruction at or below the deflector, such as a duct, conduit run or cable tray, has to sit at least 1 ft from the head horizontally. One up to 2 ft wide needs 2 ft.
• Fire Protection Research Foundation testing found that an obstruction as small as 1.5 in., directly below a head and within 8 in. of it, badly disrupted the spray. Moving it 2.5 in. sideways helped a lot. As of PHCP's write-up, none of this had made it into NFPA 13.
• High-volume, low-speed fans belong roughly centered between four heads and at least 3 ft below the deflectors.
• A head within 7 ft of a unit heater needs a high-temperature element, and heads 7 to 20 ft away may need intermediate ones, depending on airflow. Relocate a heater and several heads can end up with the wrong element.
• Open-grate mezzanines or walkways wider than 4 ft need protection below, and an ESFR head under open grating needs a water shield. Conveyors wider than 4 ft count as obstructions too.

The fix is dull. Put the ESFR heads on the same coordination model as the lights, ducts, fans and heaters before any of those layouts are final. Heads are hard to shift once the mains are up. Nearly everything else on the ceiling is easier to move. Our fire protection design page explains where that model fits in the drawing schedule.

Water supply and what an ESFR system asks of it

ESFR is a thirsty design. For Class I to IV commodities racked up to 40 ft under a 45 ft roof, Tyco's K25.2 datasheet gives the NFPA criterion as 12 design sprinklers at a minimum of 40 psi. At K25.2 that's roughly 160 gpm a head, or about 1,900 gpm at the heads before the hose stream allowance goes on top. That's one head in one arrangement, not your building's number. Your hydraulic calculation sets that. The point is scale, and it's why the flow test comes before the design.

The K25.2 head exists partly to lower pressure demand, and Tyco says it can reduce or remove the need for a fire pump compared with K14.0 ESFR heads. Smaller-orifice heads want more pressure, which is how a warehouse ends up with a pump room nobody budgeted. Order the hydrant flow test early and ask how old any existing results are. If the numbers don't reach, fire pumps and hydrants covers what closes the gap.

Alberta's fire code also wants the benchmark main drain and waterflow test results in the fire safety plan for indoor storage (NFC(AE) 2023, Division B, 2.8.2.4). Keep the acceptance-test numbers where the next inspector can find them.

Freezing and winter, and why ESFR is a wet-pipe design

The ESFR heads discussed here are listed for wet-pipe systems. Tyco's K25.2 datasheet gives the system type as "Wet pipe system." That puts a condition on the building: the space has to stay above freezing when it's -30°C outside. Consultants summarizing NFPA 13 put the line at 40°F (4°C), and below what you can reliably hold you need a freeze-protected design. Edmonton's January design temperatures are -30°C (2.5 percent) and -33°C (1 percent) in NBC(AE) 2023, Appendix C, and NBC(AE) 3.2.5.17 requires fire protection equipment in unheated areas to be protected from freezing.

So an ESFR warehouse is a heated warehouse, and the heat is part of the fire protection. Have permanent or temporary heat running, with a plan for weekends, before the system is charged. Watch the dock ends, where doors open all day in January. And remember the unit-heater rule from the obstruction list.

Coolers and freezers have their own answer. Tyco's ESFR-17 dry-type pendent sprinkler hangs a dry drop off a wet-pipe supply that stays outside the refrigerated space, and its datasheet points to NFPA 13's requirement to seal the clearance hole around the barrel in insulated freezer structures. Our cold storage and refrigeration page covers the sector, and wet vs dry sprinklers in Alberta winters covers the general freeze choices.

When storage changes after the permit

A design basis goes stale faster than a building does. Picture a tenant who moves into a shell whose ESFR system was designed for open-frame racks of a lower-hazard commodity, and brings plywood-shelf racks loaded with cartoned plastics. Nothing in the lease forces a conversation and nothing in the ceiling tells anyone. The first to find out is an inspector, or an adjuster.

The fire code does cover this. Where a change of use creates a hazard beyond what the system was designed for, the system has to be upgraded (NFC(AE) 2023, Division B, 2.1.3.1). Whether a re-rack is a change of use is the AHJ's call, not ours.

Ask the designer for a one-page design basis: commodity class, storage arrangement, maximum storage height, rack type and aisle width. Attach it to the lease and the fire safety plan. Then a re-rack is a question with an answer, not a surprise.

GC coordination checklist

1. Get the commodity class, packaging and rack type from the end user in writing before design starts. ESFR criteria depend on them.
2. Fix the clear height, roof structure depth and top-of-storage elevation, then work back from the 36 in. clearance to deflector height.
3. Get rack drawings before the permit set, not after. If in-rack sprinklers are needed they tie into the rack structure, and a late change of rack vendor means reworking fire protection, not just shelving.
4. Model ESFR heads with the lights, ducts, fans, heaters and conduit, and settle clashes on paper.
5. Order the flow test and ask early whether a pump or tank is in play.
6. Confirm heat, permanent or temporary, before the system is charged.
7. Plan the acceptance test, then hand the system into an NFPA 25-2017 program with the design basis sheet in the binder.

We design and install ESFR and other high-pile storage sprinkler systems as part of fire system installation. If you have a rack layout, a commodity list and a clear height, send them through the contact page or call 780.760.0806. Warehouse owners weighing the sector as a whole can start on our warehousing and logistics page.

Inspection after handover

ESFR heads are fast-response sprinklers, and NFPA 25-2017 has them tested or replaced at 20 years and every 10 years after that, per Falcon's chart of the 2017 tables. The rest is ordinary: an annual visual check of heads, pipe and hangers, a 5-year internal pipe assessment, and a main drain test each year (quarterly where the supply runs only through a backflow preventer or pressure-reducing valve). Our NFPA 25 frequency guide has the long-interval items, and the inspections page covers what a visit looks like.

Add one check the tables don't mention. Measure the tallest load against the deflectors at every visit. Storage creeps toward the heads, and nobody re-measures the 36 inches until something tall arrives.

Frequently asked questions

Can ESFR sprinklers go in an unheated warehouse in Edmonton?

Not as a rule. The ESFR heads covered here, Tyco's K25.2 among them, are listed for wet-pipe systems, and wet pipe needs the space held above freezing. In an unheated building the designer will look at other storage protection methods under NFPA 13, which usually means dry pipe and more in-rack protection. Freezers get dry-type ESFR drops off a wet supply outside the cold space. Your designer and AHJ decide what's acceptable for your building.

Does ESFR always eliminate in-rack sprinklers?

No. Solid-shelf racks, open-top containers, storage above the listed height and some commodities all push a design toward in-rack sprinklers or another protection method. ESFR removes in-rack piping only where the storage arrangement, commodity, ceiling height and obstructions match a listed ESFR criterion in NFPA 13. The design basis sheet is how you keep that true after move-in.

How much clearance do ESFR sprinklers need above the storage?

At least 36 in. (914 mm) from the deflector to the top of storage, unless the head is specifically listed for something else. Because heads can sit up to 18 in. below the ceiling, storage may need to stop about 4.5 ft short of the roof deck. Measure the tallest load, not the racking.

Does an ESFR system need a fire pump in Edmonton?

Sometimes. It depends on what your municipal supply delivers at the building, and ESFR demand is high. Higher-K heads such as the K25.2 are designed for lower pressures and can avoid a pump in some cases, per the manufacturer. The hydrant flow test and the hydraulic calculation decide it, so order the test before the design.

Which NFPA 13 edition applies to an Alberta warehouse?

NFPA 13-2019, as referenced by the National Building Code 2023 Alberta Edition. Later NFPA 13 editions (2022, 2025) aren't what Alberta cites, though a designer or insurer may still ask for their criteria. Inspection follows NFPA 25-2017 under NFC(AE) 2023.

Sources

• National Building Code 2023 Alberta Edition, National Research Council Canada
• National Fire Code 2023 Alberta Edition, National Research Council Canada
• Fire codes and standards, Government of Alberta
• Are ESFR Sprinklers OK? Part II: Obstructions, PHCP Pros
• Model ESFR-25 25.2 K-factor Pendent Sprinkler, TFP312, Tyco Fire Products
• Model ESFR-17 16.8 K-factor Dry Type Pendent Sprinklers, TFP320, Tyco Fire Products
• Quick-Opening Devices, Dry Pipe Systems, Code Red Consultants
• NFPA 25-2017 inspection frequencies chart, Falcon Fire Sprinkler
